Parameters
- Lifting moment: 2 tm
- Slewing angle: 335ยบ
- Max. working pressure: 160 bar
- Oil flow: 8 l/min
- Standard weight: 380 kg
- Suggested truck: GVW 2 t

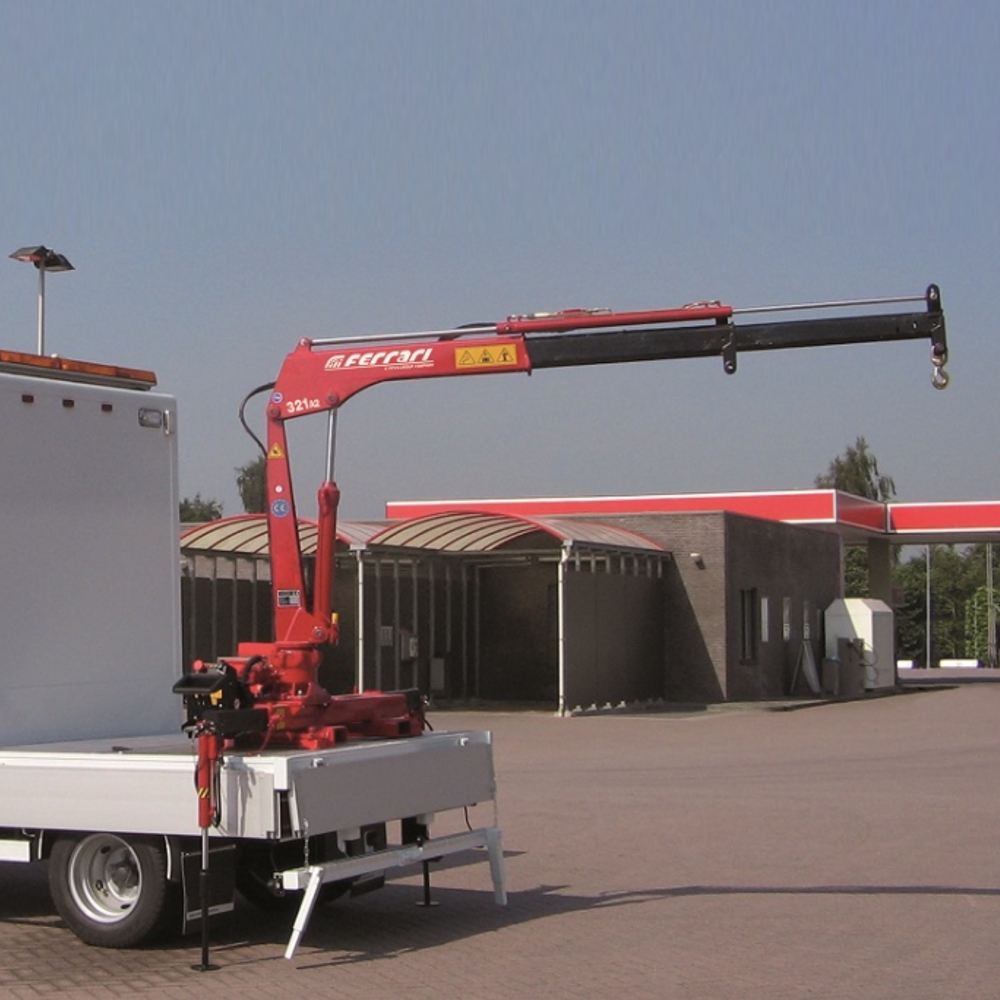

The 321 is designed to be installed on pick-up trucks, small lorries and special vehicles such as road trailers or small tracked vehicles.
Features of the model:
- Compact installation space
- Light weight
- Precise and easy to use
- Versatility in many applications
Standard:
- High tensile strength steel
- Cast base and column pinion
- Structure fully sandblasted
- Hexagonal booms

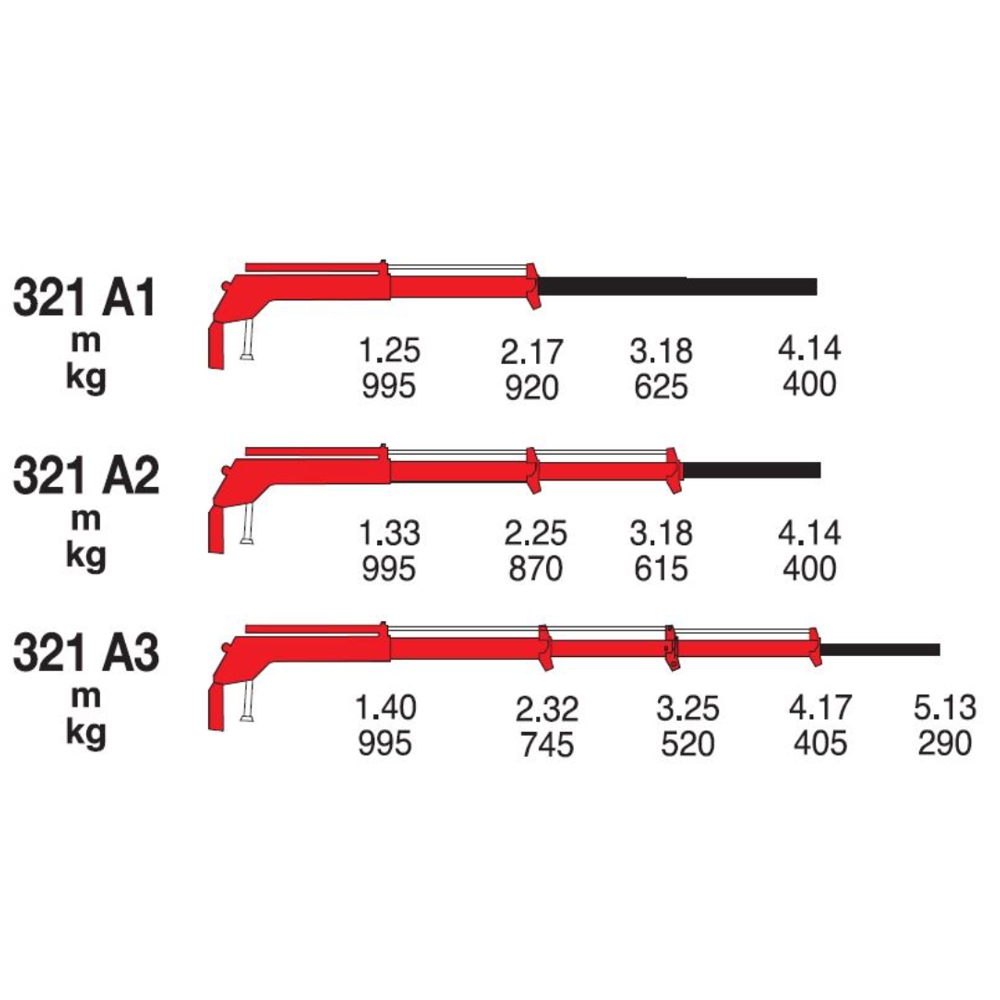

- Hydraulic outreach to 4,17 m (5,13 m with mechanical extension)
- Flanged valves
- Control panel with customizable position
- ABS protective cover on controls
- Worm screw slewing
- Self-lubricating bushings
- Independent telescopic cylinders
- Sliding pads on telescopic extensions
- SAE JIC 1514l fittings
- Swivel load hook
- Mounting kit included
- Light indicator for correct stabilizer stowing (CE)
- RLC
distributor
